Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OFNPFTTH
  • Model Number: GYTC8A Fiber Optic Cable
  • Name: Fiber optical cable
  • Type: Outdoor fiber optical cable
  • Specification: GYTC8A Self Supporting Aerial Outdoor Fiber Optical Cable
  • Jacket Size: 10*18.5mm
  • Jacket Color: Black
  • Jacket Material: PE
  • Supporting Wire: Steel wires GYTC8A Fiber Optic Cable
  • Fiber Count: 2-144core
  • Application: Long distance and local area network communication
  • Standards: YD/T 901-2001 as well as IEC 60794-1

Packaging & Delivery

Packaging Details: All of our fiber optical cable package are with export wooden drum. Outdoor fiber optical cable's wooden dimension is 100cm*75cm*75cm. Outdoor cable's delivery length according to cable cores. Also accept custom cable drum from customers. welcome to contact us!
Delivery Detail: 3-5 days

Specifications

GYTC8A Fiber Optic Cable
delivery time 2-5 days
Guarantee 5 years
OEM & ODM cable
Certificate:UL, CE, Ro

GYTC8A Stranded Loose Tube Figure 8 Self-Supporting Aerial GYTC8A Fiber Optic Cable

Product Show

Product Description

GYTC8A Fiber Optic Cable



Figure 8 Self-Supporting Cable (GYTC8A) / Fiber Optic Cable,Aerial Figure-8 Fiber Optical Cable

GYTC8A consists of loose tubes and fillers stranded around the central strength metal member, outside cable core, corrugated steel tape and PE extruded as outer sheath together with galvanized steel stranded messenger.





1) Single Loose tube, filling jelly, steel wire center strength member, water blocking tape,   Aluminum   armored PE sheath, steel wires messenger

2) Compact structure, light weight, excellent crush resisitant performance

3)  Excellent water proof layer, good moisture resistance

4)  Suitable for aerial and duct

5)  Apply toLong distance communication system, Local aera network system and Subscriber network system



GYTC8A Fiber Optic Cable Characteristics

  •      High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
  •     Good mechanical and temperature performance
  •     High strength loose tube that is hydrolysis resistant
  •     Special tube filling compound ensure a critical protection of fiber
  •     The following measures are taken to ensure the cable watertight:
  •     Steel wire used as the central strength member
  •     Loose tube filling compound
  •     100% cable core filling
  •     APL moisture barrier

GYTC8A Fiber Optic Cable Application

  • Adopted to Outdoor distribution.
  • Suitable for aerial .pipeline laying method.
  • Long distance and local area network communication

Dimensional Characteristics

Designation

Max. number

Steel wire/ stand

Stranded

Nominal cable

Nominal cable

Of fibers per tube

Diameter (mm)

units

diameter (mm)

weight (kg/km)

GYTC8A 2-36

6

2.3

6

11.6X25.5

270

GYTC8A 38-72

12

2.3

6

13.2X28.5

310

GYTC8A 74-96

12

2.3

8

14.9X33.0

390

GYTC8A 98-120

12

2.3

10

16.8X33.0

390

GYTC8A 122-144

12

2.3

12

18.8X35.0

440

Mechanical & Environmental Characteristics

Item



Characteristics



GYTC8A 2-72

GYTC8A 74-96

GYTC8A 98-144

Tensile Strength

9000N

10000N

12000N

Crush Resistance

1000/100mm

During Installation



20 Times Cable Diameter



After Installation



10 Times Cable Diameter



Messenger wire

Dirmeter: 1.2mmx7 steel wire strand

Temperature Range







Storage



-50to+70



Operating



-40to +60











 Cable Information

Optical Characteristics:
Fiber SortMultimodeG.651A1a:50/125Graded-index fiber
A1b:62.5/125
SinglemodeG.652(A,B,C)B1.1:Conventional fiber
G.652DB2: Zero dispersion shifted
G.655B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3)B4: Main technical data for positive
dispersion shifted single-mode fiber

Technical Parameters:

ItemsUnitIndex
Core No./2-3032-3638-6062-72
Diameter/Heightmm10.1/18.110.4/18.410.7/18.711.4/19.4
Unit weightkg/km195205210225
AttenuationdB/km≤0.36dB/KM@1310NM,≤0.22dB/km@1550nm
Minimum bend radiusmmDuring installation20D,During Service 10D
Operating temperature°C

-40~+70

Note:
1. Only a part of GYTC8A cables are listed in the table. GYTC8A Cables with other spans can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
Packaging & Shipping

  GYTC8A Fiber Optic Cable

Packing Details
Standard PackagingReeled by wooden Drum suitable for long-distance shipment
Normal cable factory length

Standard delivery length is 3000m with a tolerance of 5% or other required

Cable WeightApprox. 117 kg/km ~120kg/km
Sheath MarkingCable type, Fiber Counts, Name of Manufacturer, Year of Manufacturing,
Cable Length in meter
FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C and Western Union,Paypal, just choose what you like

3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely


Quote Request Information

1. Fiber Count: 2 to 144 Fibers

2. Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3

3. Order Quantity





Other Product

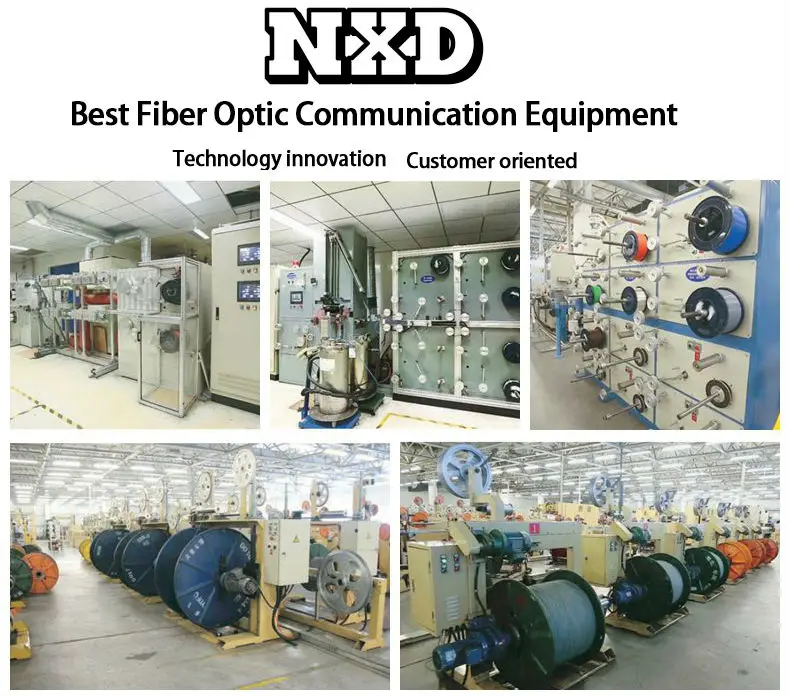

Company Information

Welcome your inquiry, and welcome to visit our factory!!!

For more information, please feel free to contact us, we will reply you in 24 hours!!!

Fiber Optic Cable Testing

Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.

Wooden Drums

Our Services

We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.

We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to ur requirment and description;

Please send us inquiry for more products info and we will give you feedback in 12 hours.
